Elevating Consumer Experience
Enjoy uninterrupted power, seamless integration and lower electricity bills
Seamless Backup, Powerful Energy
Experience comfort with NexGen Home. NexGen Home runs all your essential home appliances like ACs, Geysers, Mixer Grinders etc even during power cuts with ease, ensuring complete peace of mind.

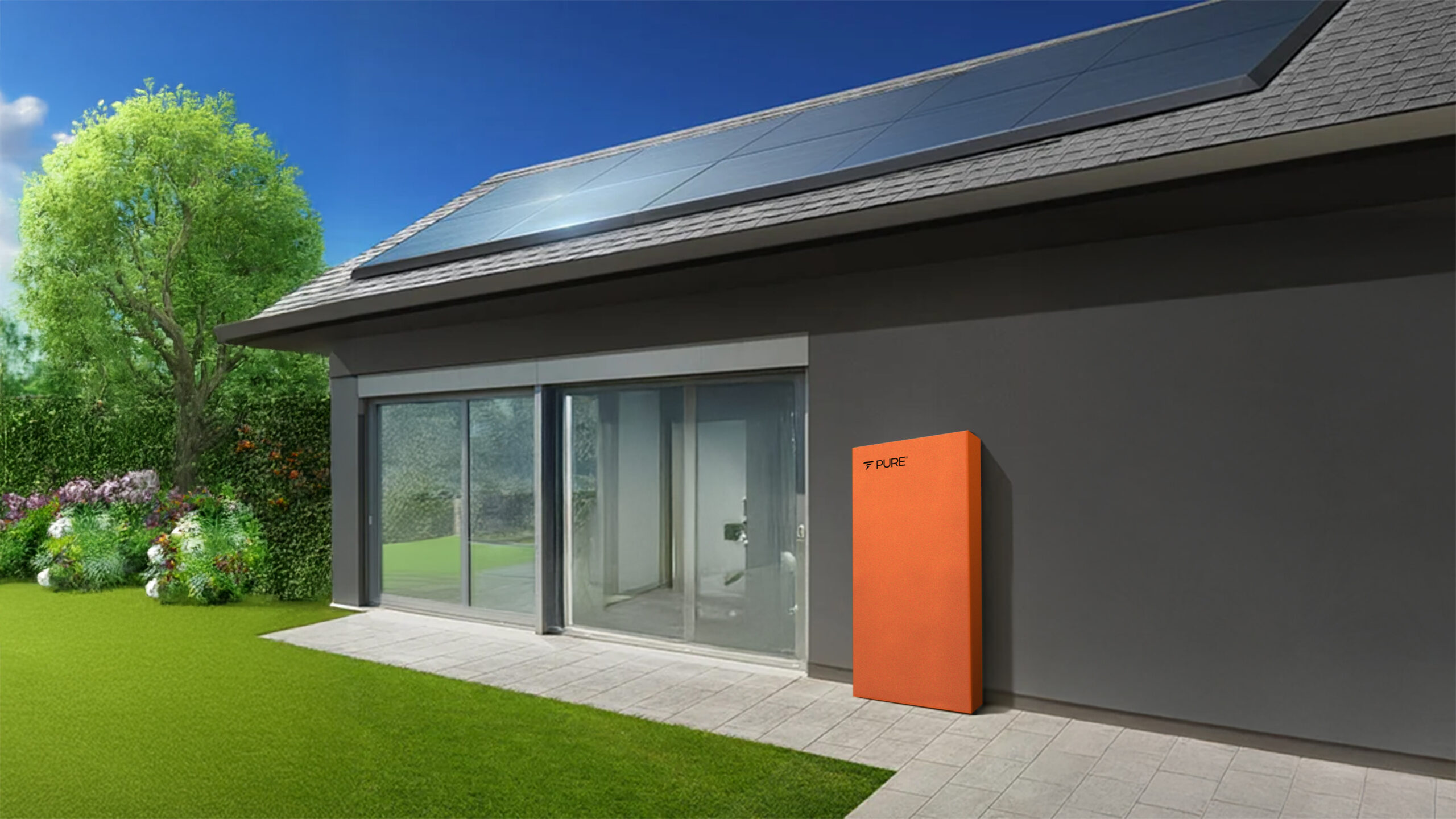

Solar Ready

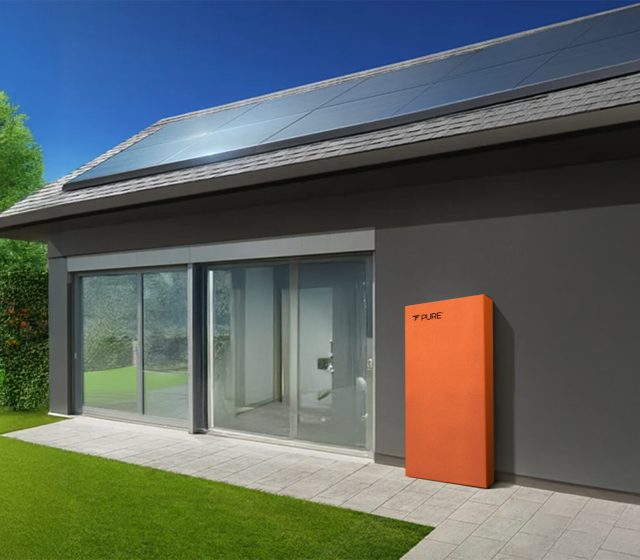

NexGen Home integrates seamlessly with your rooftop solar system, storing excess energy during the day for use at night or during cloudy periods. Ensuring your home is powered all the time and saving happens naturally.

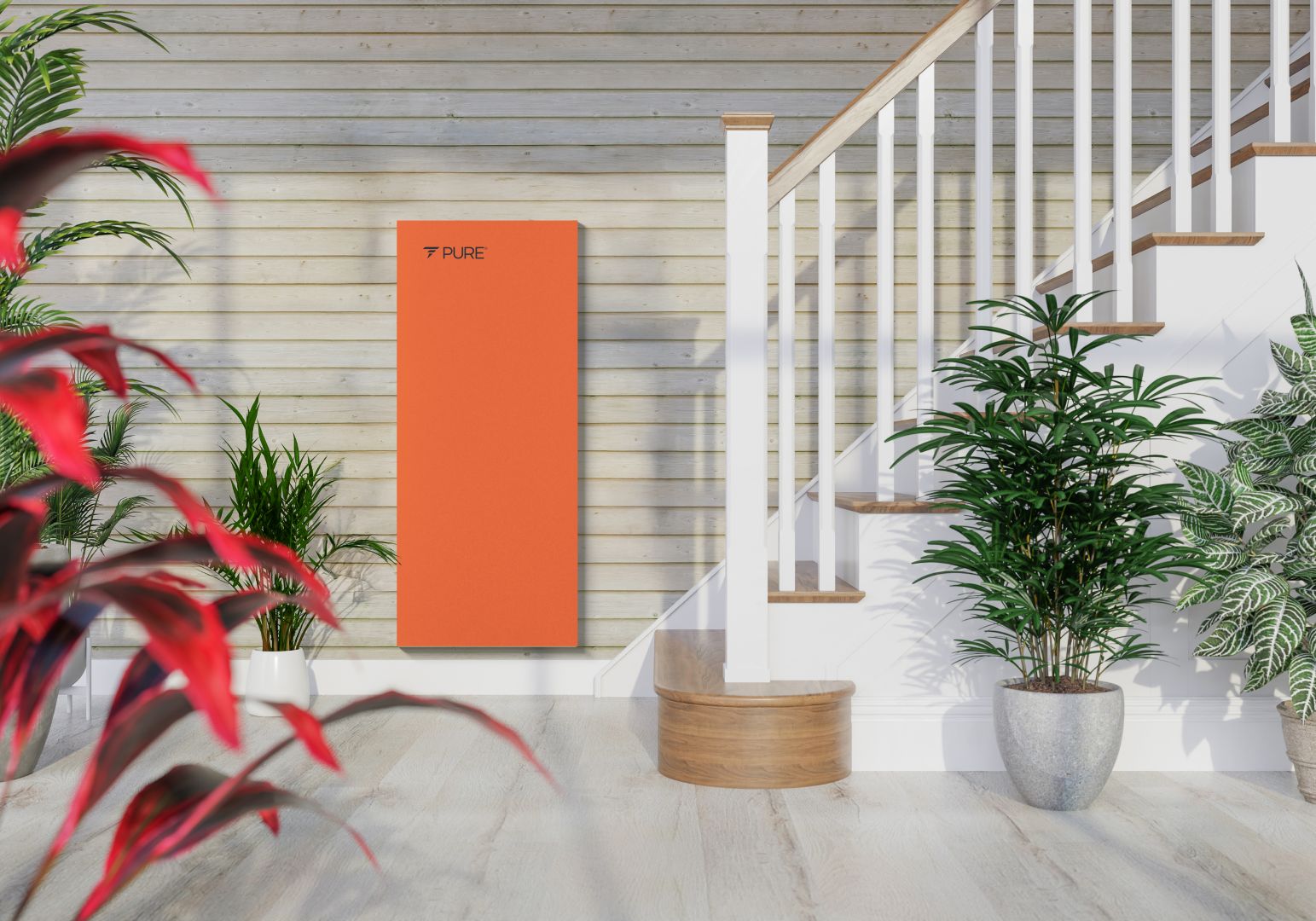

Elegant Design, Superior User Experience

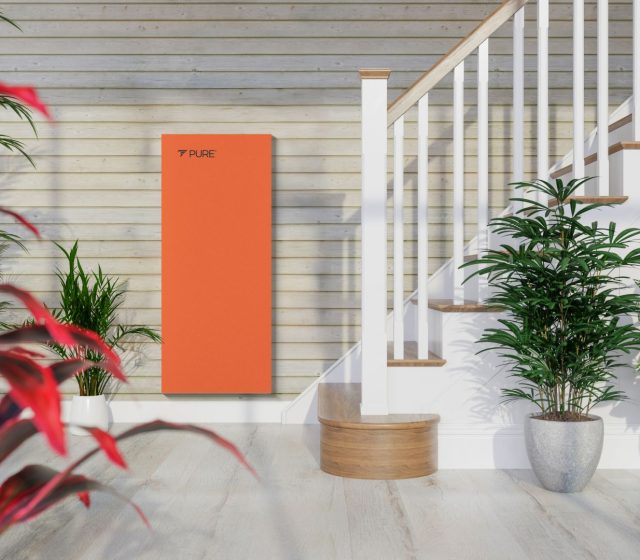

NexGen Home’s sleek, wall-mounted design complements any home interior. Plug & Play installation by certified professionals ensures a smooth setup. Zero maintenance means you can enjoy reliable power without any upkeep. Also its connected and smart to ensure updates are on your fingertips.

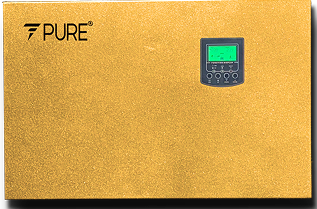

PuREPower 3.0
Capacity – 3 KVA/kWh
Standard Warranty – 5 years
Extended Warranty – 12 years
Back up time – Upto 6 hours
PuREPower 5.0
Capacity – 5 KVA/kWh
Standard Warranty – 5 years
Extended Warranty – 12 years
Back up time – Upto 8 hours
PuREPower 12.0
Capacity – 12 KVA/kWh
Standard Warranty – 5 years
Extended Warranty – 12 years
Back up time – Upto 12 hours

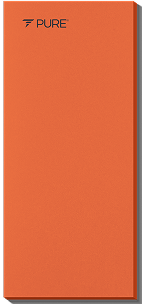

PuREPower 20.0
Capacity – 20 KVA/kWh
Standard Warranty – 5 years
Extended Warranty – 12 years
Back up time – Upto 18 hours
NexGen Power Home Specifications
Rated Power
3000VA/3000W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)
230VAC ± 5%
Surge Power
6000VA
Efficiency (Peak)
>97%
Switching Modes
On Grid /Off Grid/Hybrid(Optional)
Solar Connection
Off Grid/Hybrid
Transfer Time
10 ms
Waveform
Pure sine wave
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
No. of MPPTs
1
Maximum PV Array Open Circuit Voltage
450 VDC
Maximum PV Array Power
3000W
Maximum PV Input Current
13A
MPP Range @ Operating Voltage
60 ~ 400VDC
Maximum Solar Charge Current
100A
Maximum AC Charge Current
60A
Maximum Charge Current
100A
BATTERY
Battery Cell Technology
Lithium Ion
Qty. of Batteries
1
Nominal Voltage
48V
Battery Capacity
3.0KW
Max. Continuous charging Current
10A
Max. Continuous Discharging Current
60A
Full Charging Voltage
54.3V
Full Discharging Voltage
40V
Max. Parallel Unit
15
Protection
Protection
5th Gen BMS, Breaker
Anti-islanding Protection
Integrated
AC Over Current Protection
Integrated
Output short circuit
Integrated
Overload Protection
Integrated
Battery voltage too low
Integrated
Temperature too high
Integrated
Input voltage out of range/ Ripple too high
Integrated
Fan block
Integrated
IP Protection
IP65
General Data
Dimension, W x D x H (mm)
435 x 625 x 152
Installation Style
Wall-mounted
Certifications
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
AC connection
Terminal connectors
Net Weight (kg)
30
Thermal Management
Advanced Nano PCM & forced convection
Topology
High frequency isolation
Communication Interface
BMS, Dry-contact,CAN,Bluetooth, Wifi,AI Cloud
LCD display
Operating mode/load/input/output, etc
Noise
>50db
PV connection
MC4 connector
Standard Warranty
5 years
Extended Warranty
12 years
Rated Power
5500W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)
230VAC ± 5%
Surge Power
11000VA
Efficiency (Peak)
>94%
Switching Modes
On Grid /Off Grid/Hybrid(Optional)
Solar Connection
Off Grid/Hybrid
Transfer Time
10 ms
Waveform
Pure sine wave
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
No. of MPPTs
1
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum PV Array Power
8500W
Maximum PV Input Current
27A
MPP Range @ Operating Voltage
60 ~ 500V
Maximum Solar Charge Current
100A
Maximum AC Charge Current
100A
Maximum Charge Current
100A
BATTERY
Battery Cell Technology
Lithium Ion
Qty. of Batteries
1
Nominal Voltage
48V
Battery Capacity
5KW
Max. Continuous charging Current
10A
Max. Continuous Discharging Current
90A
Full Charging Voltage
54.3V
Full Discharging Voltage
40V
Max. Parallel Unit
15
Protection
Protection
5th Gen BMS, DC breaker
Anti-islanding Protection
Integrated
AC Over Current Protection
Integrated
Output short circuit
Integrated
Overload Protection
Integrated
Battery voltage too low
Integrated
Temperature too high
Integrated
Input voltage out of range/ Ripple too high
Integrated
Fan block
Integrated
IP Protection
IP65
General Data
Dimension, W x D x H (mm)
485 x 655 x 152
Installation Style
Wall-mounted
Certifications
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
AC connection
Terminal connectors
Net Weight (kg)
40
Thermal Management
Advanced Nano PCM & forced convection
Operating Temperature Range
-10°C ~ 60°C*
Topology
High frequency isolation
Communication Interface
BMS, Dry-contact,CAN,Bluetooth, Wifi,AI Cloud
LCD display
Operating mode/load/input/output, etc
Noise
>50db
PV connection
MC4 connector
Standard Warranty
5 years
Extended Warranty
12 years
Rated Power
12000W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)
230VAC ± 5%
Surge Power
22000VA
Efficiency (Peak)
>94%
Switching Modes
On Grid /Off Grid/Hybrid(Optional)
Solar Connection
Off Grid/Hybrid
Transfer Time
10 ms
Waveform
Pure sine wave
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
No. of MPPTs
2
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum PV Array Power
11000W(2*5500W)
Maximum PV Input Current
18A X 2
MPP Range @ Operating Voltage
90 ~ 500V
Maximum Solar Charge Current
150A
Maximum AC Charge Current
150A
Maximum Charge Current
150A
BATTERY
Battery Cell Technology
Lithium Ion
Qty. of Batteries
2
Nominal Voltage
48V
Battery Capacity
12KW
Max. Continuous charging Current
20A
Max. Continuous Discharging Current
90A X 2
Full Charging Voltage
54.3V
Full Discharging Voltage
40V
Max. Parallel Unit
15
Protection
Protection
5th Gen BMS, DC breaker
Anti-islanding Protection
Integrated
AC Over Current Protection
Integrated
Output short circuit
Integrated
Overload Protection
Integrated
Battery voltage too low
Integrated
Temperature too high
Integrated
Input voltage out of range/ Ripple too high
Integrated
Fan block
Integrated
IP Protection
IP65
General Data
Dimension, W x D x H (mm)
485 x 1110 x 152
Installation Style
Wall-mounted
Certifications
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
AC connection
Terminal connectors
Net Weight (kg)
82
Thermal Management
Advanced Nano PCM & forced convection
Operating Temperature Range
-10°C ~ 60°C*
Topology
High frequency isolation
Communication Interface
BMS, Dry-contact,CAN,Bluetooth, Wifi,AI Cloud
LCD display
Operating mode/load/input/output, etc
Noise
>50db
No.of AC Output
2
PV connection
MC4 connector
Standard Warranty
5 years
Extended Warranty
12 years
Rated Power
20000W
INPUT
Voltage
3 x 415 VAC
Selectable Voltage Range
155-480 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Battery Mode)
415VAC ± 5%
Surge Power
36000VA
Efficiency (Peak)
>97%
Switching Modes
On Grid /Off Grid/Hybrid(Optional)
Solar Connection
Off Grid/Hybrid
Transfer Time
10 ms
Waveform
Pure sine wave
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
No. of MPPTs
3
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum PV Array Power
3*8500w
Maximum PV Input Current
27A X 3
MPP Range @ Operating Voltage
90 ~ 500V
Maximum Solar Charge Current
360A
Maximum AC Charge Current
360A
Maximum Charge Current
360A
BATTERY
Battery Cell Technology
Lithium Ion
Qty. of Batteries
4
Nominal Voltage
48V
Battery Capacity
20KW
Max. Continuous charging Current
40A
Max. Continuous Discharging Current
90A X 4
Full Charging Voltage
54.3V
Full Discharging Voltage
40V
Max. Parallel Unit
15
Protection
Protection
5th Gen BMS, DC breaker
Anti-islanding Protection
Integrated
AC Over Current Protection
Integrated
Output short circuit
Integrated
Overload Protection
Integrated
Battery voltage too low
Integrated
Temperature too high
Integrated
Input voltage out of range/ Ripple too high
Integrated
Fan block
Integrated
IP Protection
IP65
General Data
Dimension, W x D x H (mm)
970 x 2220 x 152
Installation Style
Floor standing
Certifications
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
AC connection
Terminal connectors
Net Weight (kg)
115
Thermal Management
Advanced Nano PCM & forced convection
Operating Temperature Range
-10°C ~ 60°C*
Topology
High frequency isolation
Communication Interface
BMS, Dry-contact,CAN,Bluetooth, Wifi,AI Cloud
LCD display
Operating mode/load/input/output, etc
Noise
>50db
No.of AC Output
2
PV connection
MC4 connector
Standard Warranty
5 years
Extended Warranty
12 years
Key Features

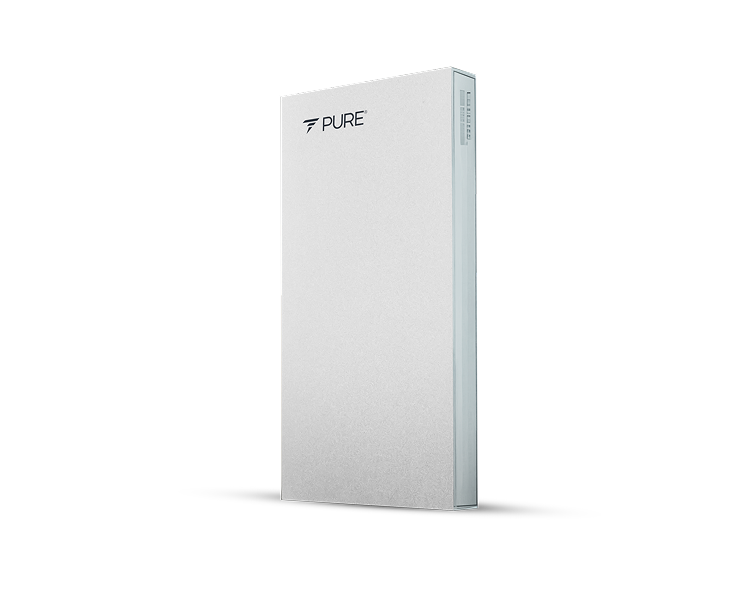

Power Beyond Expectations
Get started today—place your order or book a call with a NexGen eDrive advisor to explore the best energy solution for you.
